# Newton fractals

##### December 20, 2020

Another interesting set of fractals, are Newton fractals. Newton fractals are created by applying Newton's method to complex function $f(z)$. The method uses the iterated equation $$ z_{n+1} = z - \frac{f(z_n)}{f'(z_n)}. $$ If we want to apply Newton's method, we also need to find the derivative of the function $f(z)$. Since Newton's method is used to find the zero's of a function, if we repeatedly apply it to a point $z$, then $f(z_{n\rightarrow\infty}) = 0$, meaning that every point converges to a root of the complex function. Although the points usually converge to a root, it is also possible that is orbit cyclic.

Suppose we have the function $f(z) = z^3 - 1$, then the derivative is $f'(z) = 3z^2$. This function has three roots.
If we apply Newton's method for all the points in the plane $[-1, 1]\times[-1, 1]$, then each of these points will end up at one of those three roots.
We can then visualize the result by giving the resulting pixel value a color based on the root it ended up at.
In this case the color is determined by looking at the angle of the root, and then get a color from a color map.
The color map used in this example is `hsv2rgb(angle + 0.1, 1, 1)`

.

It took a few attempts to get this image. The silliest mistake I made was using a function that has only 1, or 2 roots. This simply results in an image with only one, or two colors.

## Relaxed Newton's method

It is possible to modify the method by multiplying with a relaxation parameter $R$. This real number is used to increase/decrease the step size. The relaxed Newton's method is $$ z_{n+1} = z_n - R\cdot\frac{f(z_n)}{f'(z_n)}. $$ If we then let the value of R animate between $[0.2, 2.2]$, we can see what the effect of this relaxation parameter is. Press play in the shader below, to see the animation.

## Generalized Newton's method

Another thing that can be done is to generalize the method by it multiplying with a complex number $a$, instead of using the real relaxation parameter: $$ z_{n+1} = z_n - a\cdot\frac{f(z_n)}{f'(z_n)}. $$ If we then let $\Re(z)$ and $\Im(z)$ animate between the values $[-1, 1]$, in this case with a Lissajous curve, we can see the effect $a$ has on the method. Press play in the shader below to see the animation.

## Using a different color map

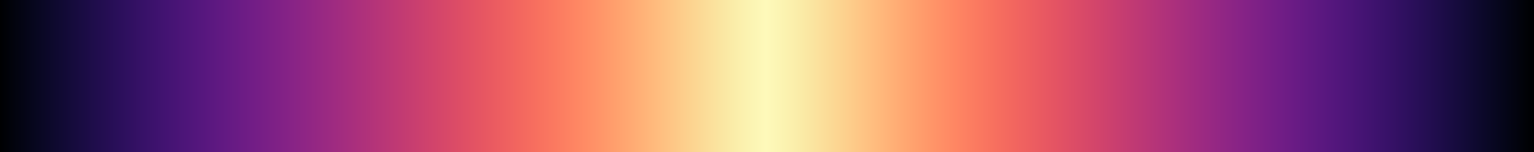

Instead of using the HSV color map, which gives us a rainbow based on the angle of the complex number, we are going to look at the magnitude of the complex number, which is $|z|$. We will also use the magma color map from matplotlib, which is created by Mattz and available on ShaderToy. I have slightly modified the color map, because I wanted it to wrap at the edges, instead of having a discontinuity.

Because we want to loop our color map, we will only use the fractional part of $|z|$. The following image is the Newton fractals rendered with the color map.
